The machine is suitable for rough or fine machining of auto, bearing, wind power, motor, and water pump, etc. The base and column use one-piece high-quality castings. X&Z is using a brand linear guideway. The main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency. Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving. Full cover is your optional together with chip conveyor and coolant system
Parameters of Conventional Single Column Vertical Lathe
|
Model No |
CK577 |
CK518 |
CK5110 |
CK5112 |
CK5116 |
|
Max Machining Diameter(mm) |
700 |
860 |
1,000 |
1,250 |
1,600 |
|
Max Machining Height(mm) |
650 |
750 |
750 |
1,000 |
1,000 |
|
Max Load on Table(Kg) |
1,000 |
1,200 |
1,200 |
5,000 |
8,000 |
|
Table Diameter(mm) |
600 |
800 |
900 |
1,010 |
1,400 |
|
Main Motor Power(Kw) |
11 |
15 |
15 |
22 |
30 |
|
Table Rotary Speed(r/min) |
38-500 |
20-400 |
20-400 |
6.3-300 |
5-250 |
|
Horizontal Travel X(mm) |
420 |
550 |
550 |
700 |
915 |
|
Vertical Travel Z(mm) |
600 |
650 |
650 |
650 |
800 |
|
Feeding Speed of X&Z(mm/min) |
1-2,000 |
1-2,000 |
1-2,000 |
1-3,000 |
1-3,000 |
|
Position Accuracy of X&Z(mm/1000mm) |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
|
Size of Machine LxWxH (M) |
2.0x1.8x1.8 |
2.2x1.9x1.9 |
2.4x2.1x2.4 |
2.5x2.3x3.2 |
2.5x2.3x3.5 |
|
Weight of Machine (Kg) |
4,500 |
6,500 |
7,000 |
9,300 |
14,000 |

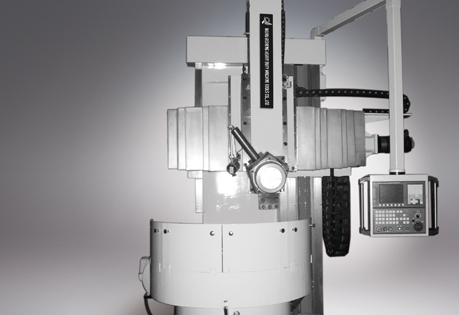

The conventional single column vertical lathe is a compact, high precision, heavy-duty machine. The rigid vertical column and base are quality castings, heavily ribbed for reduced thermal distortion and vibration dampening. It is designed for turning of small or medium-size workpieces. The X and Z axis guideways are completely enclosed and a forced lubrication system assures high precision. The Ballscrew driving system enables rapid traverse rates and precision feeding traverse. The precision high-class ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision. The X & Z-axis can be working with the DRO system, the operator can easily set the tools and work an easier way to finish the machining. The single spindle lathe can be modified to be a 2-axis CNC control if you need it in the future. The automatic lubrication system is standard for this single spindle automatic lathe.
